EXP 3 THE ARCHITECTURE

 REAL TIME IMAGE CAPTURES OF THE DEVELOPED LUMION ENVIRONMENT

4 REAL TIME IMAGE CAPTURES SHOWING 2 DRAFT LUMION ENVIRONMENTS

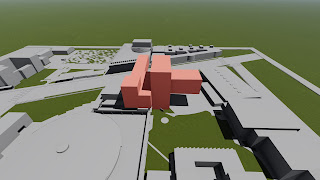

Draft 1

Draft 2

SKETCHUP MODEL

https://3dwarehouse.sketchup.com/model/88f87e92-9820-41ac-9aed-64d5a785b57d/EXP3-THE-BRIDGE

 FULLY DEVELOPED LUMION ENVIRONMENT

https://www.dropbox.com/s/wvsvsfsp5twh5yw/m.ls7?dl=0

EXP 3 36 CUSTOM TEXTURES And MOVING ELEMENTS

                                                                      Selected Material



Moving elements 1

The cover of lecture room can be rotated.

Moving elements 2

The north facade can be adjusted to shade the sun.

EXP 3 THE BRIDGE THEORY AND 18 SKETCH PERSPECTIVES

THEORY

KEY WORDS

Form     Structure    Function

Form in building architecture is the final output.

Structure is the set of physical and digital components, their interfaces, and the design rationales that control their evolution.
Function in building is roughly equivalent to requirements.
The three basic elements need to be considered when design a house. And they have strong connections, so one can not be separated from the others.  A good design should combine them well in order to perform well.

Preiss,Paul. "Form, Structure and Function – Architecture is NOT Emergent". Accessed 6, June,2017. https://www.iasaglobal.org/form-structure-and-function-architecture-is-not-emergent/




18 SKETCH PERSPECTIVES

Selected Sketch

EXP_2 THE IMAGE CAPTURES AND ARCHITECTURE

 Exterior

Tunnel with light material on the wall

 Interior with medium material on floor and dark material on glass wall.

Sketchup link
https://3dwarehouse.sketchup.com/model/7f37cb98-ce06-466e-809a-53c81329d54c/EXP2-THE-SPACE-BETWEEN-Lightrail-train-station-arch11012017

Lumion document link
https://www.dropbox.com/sh/rcg5i1hony1zy8k/AADZOkgqGEcPLvoWR6PkyA2ka?dl=0

EXP_2 36 CUSTOM TEXTURES

Selected Material

Light

Linear elements is often used by Walter Gropius for efficiency and simplicity. This light materiel is used in the underground part to provide more light.

Medium

Simple geometry often rectangular is common in modernist architects' works. With the calculation and arrangement they can become interesting decoration.

Dark

The station is designed with triangular cover, which can be reinforced by this material.

EXP_2 18 SKETCH AXONOMETRICS

Axonometrics

Parallel projections

 one rectilinear form interacting with one curvilinear form.

EXP_2 THE ARCHITECTURAL CONCEPTS

Herzog and De Meuron and Walter Gropius

• Herzog and De Meuron have the "Organic" philosophy, which means building are designed to fit its nature surroundings.
• Walter Gropius uses the technology as a basis, transform building into a science of precise mathmatical calculation.



Themes : technology

UNSW is a modern, global University. The station reflects this context with the special structure inspired  by the "Organic" philosophy. Considering the large amount of passengers and cars and the width of the street, the design makes cars pass under the station.

This is a conceptual design using technology such as light but strong materiel and precise calculation to support its structure. This design is complicated and can only be built with the help of technology. And it will be a good practice and test of new technology.
